Assessing citation networks for dissemination and implementation research frameworks



A recent review of frameworks used in dissemination and implementation (D&I) science described 61 judged to be related either to dissemination, implementation, or both. The current use of these frameworks and their contributions to D&I science more broadly has yet to be reviewed. For these reasons, our objective was to determine the role of these frameworks in the development of D&I science.


We used the Web of Science™ Core Collection and Google Scholar™ to conduct a citation network analysis for the key frameworks described in a recent systematic review of D&I frameworks (Am J Prev Med 43(3):337–350, 2012). From January to August 2016, we collected framework data including title, reference, publication year, and citations per year and conducted descriptive and main path network analyses to identify those most important in holding the current citation network for D&I frameworks together.


The source article contained 119 cited references, with 50 published articles and 11 documents identified as a primary framework reference. The average citations per year for the 61 frameworks reviewed ranged from 0.7 to 103.3 among articles published from 1985 to 2012. Citation rates from all frameworks are reported with citation network analyses for the framework review article and ten highly cited framework seed articles. The main path for the D&I framework citation network is presented.


We examined citation rates and the main paths through the citation network to delineate the current landscape of D&I framework research, and opportunities for advancing framework development and use. Dissemination and implementation researchers and practitioners may consider frequency of framework citation and our network findings when planning implementation efforts to build upon this foundation and promote systematic advances in D&I science.

Peer Review reports


The field of dissemination and implementation (D&I) science continues to evolve with contributions from a variety of disciplines, researchers, and institutions across the globe [1]. Significant advances in our understanding of how to conceptualize D&I research and practice were facilitated by a recent comprehensive review of relevant models, theories, and frameworks [2]. The review identified 61 frameworks to guide D&I researchers and practitioners in their research-to-practice activities at different socio-ecologic levels within the health care system (individual, organization, community, healthcare system, policy). The goal was to develop a D&I framework inventory to inform selection efforts for researchers and practitioners based on a given framework’s construct flexibility, its predilection for dissemination and/or implementation activities, as well as its socio-ecologic level targeting.

However, better understanding the most frequently cited D&I frameworks and the citation networks surrounding these frameworks can also provide useful information for selection, conceptualization, and resources for operationalization. For example, in cases where several different frameworks might be applicable to a given implementation intervention, identifying the most prominent and commonly applied frameworks in the field could have several advantages. First, it could provide researchers and practitioners with the most supporting literature to inform their effort. Second, accessing this information may increase the chances of intervention success and therefore help the best frameworks emerge. Third, as the framework literature evolves, there will be increasing opportunities to advance D&I science with respect to fidelity of framework use, core framework components, standardized measurement, advantages and disadvantages of a given framework, and ultimately implementation outcomes [3]. More broadly, mapping D&I framework networks can build upon this foundation to promote systematic advances in D&I science through identifying the common set of assumptions and knowledge that constitutes consensus in the field.

Bibliometric (or citation) analysis is one method to investigate the scholarly landscape surrounding D&I frameworks from the review. This quantitative technique is increasingly applied to measure the impact of academic research and examine relationships using tools such as citation network analysis [4,5,6]. In general, citation network analysis provides a map of the most highly cited publications within a given research domain, much like the way Google™ uses page rank to identify the most relevant websites [7]. This approach to understanding the state of scientific advancement has been used across a range of fields, including public administration, public health service systems, physical activity environments, and analytic method development, to discern the degree to which information flows through a scholarly network and identify opportunities for transdisciplinary collaboration and crosstalk [8,9,10,11,12,13,14]. Using citation analysis to examine the rapidly evolving D&I field could not only indicate the most frequently cited D&I frameworks but also determine their relationships across time and discipline, and map the emerging knowledge network constituting the D&I framework field.

For these reasons, we conducted a citation network analysis of D&I research frameworks. We created a snapshot of the scientific development of D&I framework research based on carefully selected framework articles followed forward in time as they integrated into the growing body of D&I knowledge. We examined citation rates and the main paths through the citation network to delineate the current landscape of D&I framework research, and opportunities for advancing framework development and use.


Citation network analysis

We used a citation data network collection tool, the Citation Network Analyzer (CNA), to generate the data and conduct our study [15, 16]. This tool uses a constrained snowball sampling approach to identify a network of documents (i.e., journal and conference papers, theses and dissertations, academic books, pre-prints, abstracts, technical reports) in Google Scholar™ that can be used for descriptive, main path, and other network analyses via an R software package. In general, a constrained snowball sample of academic publications is created by identifying seed articles, determining the levels of data (articles that cite the seeds, articles that cite those, and so on), and selecting the sampling rate at each level. This vetted, efficient and inclusive networking approach to following citations forward in time is uniquely suited to advance our current understanding of the literature surrounding D&I framework development and use. In addition, the output from the CNA tool can be used to graphically represent the citation network and assign weights to the articles based on their importance in maintaining the network architecture as described below.

Our approach of using citation network analysis to conduct structured literature reviews was based on prior work using the CNA tool [9, 10, 13, 15, 17]. This approach can lead to a less biased assessment of the academic literature than traditional narrative reviews for at least two reasons. First, a citation analysis approach can avoid the cognitive bias associated with traditional literature searches using keyword searches which may be limited by the researcher expertise, training, and preferences. Second, the use of Google Scholar™ and a snowball sampling technique based on selected seed articles, rather than Web of Science™ citation tools based on keywords for instance, is able to survey a broader scope of publications that may be relevant to D&I frameworks especially given their expansive roots in fields ranging from agriculture, business, and political science to public health and medicine [18, 19]. In addition, the CNA tool allows for a constrained approach to snowball sampling, rather than traditional snowball sampling where the sample grows exponentially, in order to limit the articles at each level from the seed article to arrive at empirical findings using a fraction of the data [15].

As detailed in Additional file 1 , we conducted two analyses using this novel approach. First, we synthesized the literature covered in the framework review article by Tabak et al. [2] with respect to recent citations and performed a structured literature review of the article itself. Next, we applied a structured literature review to a snowball sample of ten framework articles identified as the most important by the study team, largely based on the Tabak review. Overall, this work allowed us to understand the relevance of the framework review article as a D&I resource and to identify those frameworks forming the current backbone of the D&I framework field (i.e., framework articles in the network’s main path).

Characterizing the Tabak et al. framework review article and its citation network

The Tabak systematic review contained 119 references, with 50 published articles and 11 documents (reports/chapters/books) identified as a primary D&I framework reference (n = 61) [2]. These D&I frameworks were identified first through selecting commonly cited frameworks, then through snowball sampling and expert consultation including with U.S. National Institute of Health offıcials who process and review D&I grants. Frameworks were excluded from the review according to the following criteria: (1) focused on practitioner rather than D&I researcher; (2) applied to individual behavior change only (i.e., without ties to local, organizational or community dissemination); (3) intended only for national level use versus local, community, or organizational level; (4) frameworks focused only on dissemination after research study completion; and (5) articles not written in the English language. The frameworks were then judged by the authors to be related either more to dissemination, implementation, or both equally. Each framework’s construct flexibility was rated as broad and flexible versus operational and defined for a given context and activity. Last, the socio-ecologic level (individual, organization, community, healthcare system, policy) targeted by the framework was categorized, with most operating at more than one level.

We extracted the primary citation for each framework. In cases where more than one primary reference was used (n = 21), we selected the most relevant reference, usually the oldest, as the primary reference. The primary references for 11 frameworks were reports, chapters, or books. Because peer-reviewed articles were the most common documents cited in this study, we use the term article to denote all documents throughout the remainder of the manuscript.

To better understand the framework articles discussed in the Tabak review, we conducted descriptive analyses to identify the most common journals, authors, and countries of origin for the 61 models. We also examined the citation rates for each framework. We defined a citation rate as the number of citations/year(s) since publication. We used the Web of Science™ Core Collection in January 2016 to conduct these descriptive citation analyses and inform our subsequent network analysis described in the Additional file 1 .

Citation network analysis of selected D&I frameworks

Next, we conducted a citation network analysis of ten carefully selected D&I framework articles we felt reflected the current state of the field. Eight of these were based on citation rates and the Tabak review. However, we also included two additional frameworks given their relevance to implementation science and relatively high citation rates: (1) Theoretical Domains Framework (TDF) [20, 21] and the (2) Knowledge to Action Framework (KTA) [22], for a total of ten seed articles for our next citation network analysis. Both of these models were developed by researchers outside the USA and were not included in the Tabak review. The details of the D&I framework citation analysis are included in the Additional file 1 .

Last, we performed a main path analysis to identify the connectedness and links among the articles considered to be the backbone of the D&I framework citation network. This approach identifies the key articles influencing D&I models based on the selected seed articles. We determined the traversal weights indicating the proportion of network paths that included a given article node in the network [23]. For instance, a traversal weight of 0.25 for framework X indicates that its article exists in 25% of the citation paths in the network. This traversal weight indicates the importance of any particular node (i.e., article) in the network. We constructed the main path by removing all ties in the network scoring below the 95% percentile for traversal weight value. We normalized the traversal weights according to flow using the Search Path Count method [24]. All computations were accomplished with Pajek [23].

All analyses were conducted between January 2016 and August 2016. This study was deemed not regulated by the Institutional Review Board at the University of Michigan.


Tabak framework review article and its citation network

As illustrated in Fig. 1, the Tabak framework review article is an increasingly cited resource. As of January 2016, it had been cumulatively cited 456 times across 388 articles and other source items indexed within Web of Science™ Core Collection. As shown in Table 1, there was a broad distribution of citation numbers and annual citation rates across the 61 framework articles within the Tabak review and our two selected framework articles (KTA and TDF). The average number of citations per year ranged from 0 to 1949 among articles published from 1962 to 2012. The outlier with the highest citation rate was a book reference for Rogers’ Diffusion of Innovations.

Fig. 1

Citation report through 2015 for ‘Bridging Research and Practice Models for Dissemination and Implementation Research’ by Tabak et al. [2]

Table 1 Citations for D&I frameworks in published articles as of January 2016

Based on the structured literature review of the Tabak article using the CNA tool, we identified 239 articles across the network and its three levels of ‘distance.’ This included 17 level-one articles directly referencing the Tabak article, with the remainder of articles residing two and three levels from the Tabak source article. The majority of the documents were journal articles (84%), followed by books (16%). The articles in the Tabak network were published between 2002 and 2016, with 51 articles published prior to the source article year of 2012. The majority (86%) of these were three levels from the Tabak seed article and (35%) were book references. We identified 202 unique first authors contributing to this network. Each author contributed 1.18 articles (standard deviation (SD) = 0.58), on average. Most first authors contributed only one article to the network (one = 177; two = 19, three = 3, four = 2, six = 1). We identified 123 unique journals (books excluded) contributing to the Tabak network, each providing an average of 1.62 articles (SD = 2.63). Most journals contributed one article (n = 95). The top three journals producing the most articles were: Implementation Science (n = 29), Annual Review of Public Health (n = 6), and BMC Public Health (n = 5). All other journals had four or fewer articles each. The articles in the Tabak network were cited between 0 and 4410 times. The top ten cited articles in the Tabak network are shown in Table 2, and none of which served as a primary framework reference. As illustrated in Fig. 2, there were prominent ties in the Tabak network to social care and the law by Aveyard; normalization process and general implementation theory by May; implementation work by Glasgow, Proctor, Neta, and Chambers; a gateway to broader literature via a movement science article by Peters; a Karlin article which ties in psychotherapy; and a 2013 contribution by Straus that was an introduction to knowledge translation in healthcare.

Table 2 Ten most cited articles within the Tabak framework review citation network
Fig. 2

Citation network for ‘Bridging Research and Practice Models for Dissemination and Implementation Research’ by Tabak et al. [2]. Most first authors contributed only one article (one = 177). Those authors with two articles—Aarons, G; Archambault, P; Bjurlin, M; Blease, CR; Brownson, R; Chambers, D; Chor, K; Davidoff, F; Edwards, N; Gagliardi, A; Kozica, S; May, C; Naci, H; Neta, G; Page, A; Partridge, SR; Rhoades, E; Trevithick, P; Trockel, M; three articles—Aveyard, H; O’Brien, J; Proctor, E; four articles—Glasgow, R and Powell, B; and six articles—Thompson, N

Citation network analysis of selected D&I frameworks

The citation network for our seed articles highlighted in Table 1 included 355 unique documents published between 1996 and 2014. There were 302,472 citation links connecting the articles in this network. The majority of citations was from 323 journal articles (91%), followed by 29 books (8%), and 3 in-proceedings (1%). We identified 274 unique first authors, each contributing 1.30 articles (SD = 0.84), on average. The majority of first authors provided one article to the network with only six authors contributing greater than three. We also identified 128 unique journals contributing to this network, each providing an average of 2.52 articles (SD = 4.04). While many journals contributed one article (n = 29), the top five journals producing the most articles were: Strategic Management Journal (n = 29), Academy of Management Journal (n = 25), Implementation Science (n = 20), Organization Science (n = 15), and Management Science (n = 10). All other journals contributed less than ten articles each. The top ten cited articles are shown in Table 3, with Szulanski’s Sticky Knowledge as the only primary framework reference from the Tabak review. The remainder of articles tended to focus on business practices and knowledge sharing, collaboration networks, and social and/or intellectual capital. The articles for the D&I framework network contributed between 64 and 12,680 citations, with a median of 489.

Table 3 Ten most cited articles within the D&I framework citation network

As illustrated in Fig. 3, the D&I framework citation network appears centered around the 2004 Greenhalgh et al. article with prominent ties to the Theoretical Domains Framework, the Knowledge to Action Framework, the Promoting Action on Research Implementation in Health Services Framework (PARiHS), the Consolidated Framework for Implementation Research (CFIR), and an article conceptualizing implementation outcomes, among others. A more complete picture of the network’s primary core is offered with the main path analysis, which consists of those ties above the 95% percentile score for traversal weight (0.0106). The main path, illustrated in Fig. 4, is comprised of the 15 articles listed in Table 4. A simple interpretation of the main path is that these articles are most important in holding the entire D&I framework citation network together. In this case, seven of the ten D&I framework seed articles are part of the main path, along with eight non-seed articles. Visually, one can inspect the main path and observe the chronological flow of influence from earlier to more recent publications. Kitson [25] and Klein [26] act as the primary originating sources of influence in the main path, which serve to influence Greenhalgh [27], Damschroder [28], and Proctor [29]. These five articles, along with Glasgow [30], all converge in Aarons [31], which acts as a major hub for the remainder of the more recent works on the periphery of the main path.

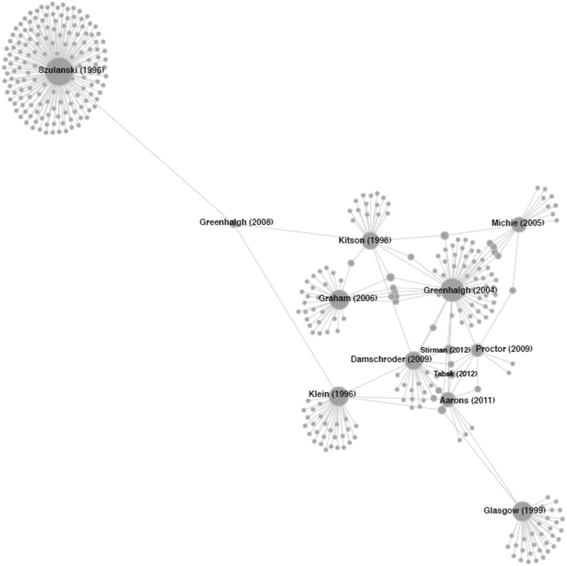

Fig. 3

D&I framework citation network. The majority of first authors provided only one article to the network with only six authors contributing greater than three including Hansen, M and Pronovost, P—four articles; Michie, S and Rycroft-Malone, J—five articles; Greenhalgh, T—seven articles; and Glasgow, R—eight articles

Fig. 4

The main path for a D&I framework citation network. A simple interpretation of the citation network main path is that these articles are the most important in holding the entire D&I framework citation network together. In this case, seven of the ten D&I framework seed articles were part of the main path, along with eight non-seed articles

Table 4 Main path articles for leading D&I research frameworks


Using citation analysis, we identified the most frequently cited D&I frameworks and their relationships across time and discipline and mapped the knowledge network constituting the D&I framework field. We discovered that the Tabak framework review has been increasingly cited and that it was included in the periphery of the main D&I framework network path indicating its value as a recognized resource for D&I researchers and practitioners. We identified the leading journals and authors contributing to the D&I framework literature using methods that limit cognitive biases associated with traditional literature searches using keywords. Using the CNA tool to conduct our structured literature review, we were able to identify the main path articles that signify those most important in holding the entire D&I framework citation network together. Overall, D&I researchers and practitioners may consider frequency of citation and this network structure when planning implementation efforts to build upon this foundation and promote systematic advances in D&I science. Further work is necessary to delineate how these frameworks are being used in the literature, framework selection criteria for planning D&I research efforts, the core components of these frameworks, and how framework use relates to improved implementation outcomes [3].

This study provides insight into at least two aspects of the evolving D&I scientific field. First, it confirms that D&I research has witnessed a surge of frameworks with most developed in the last two decades [2]. However, we found that the majority of articles were rarely cited, leaving only a few highly cited frameworks. It is difficult to know whether more recent frameworks will be used or not based on this analysis though several recent articles, including the Tabak review, were highly cited. Nonetheless, there does appear to be framework saturation creating an increasing need to delve further into better understanding the current cadre rather than creating new D&I frameworks. Second, taking into consideration citation rates and this network structure may be a key factor to consider when choosing a framework, in addition to the socioecological level, construct flexibility, and location on the D&I spectrum. For example, increasing citations and centrality in the network indicates more literature is available to highlight the advantages and disadvantages of using a given framework. In addition, there may be more operational and measurement resources with increasing centrality. Taking these additional aspects into consideration creates opportunities to scrutinize frameworks, starting with those in the main path, and advance D&I science by examining issues of fidelity, core and adaptive components, measurement, and relationships to implementation outcomes [1].

We found a broad range of scientific fields contributing to the D&I citation network given our use of Google Scholar™ and its extensive search capabilities [7, 19]. This reinforces the need to scan literature outside of health-related fields to discover new guidance for D&I sciences. For example, other than the specialized journal Implementation Science, which focuses specifically on the field, most citations of the Tabak framework review article were from public health journals due in part to it being a narrative review that used snowball sampling methods and focused on health. In addition, the journals other than Implementation Science, which published the highest number of citations in the broader D&I framework network, were all in the management and business fields. This is consistent with a prior review of leading management journals that found a significant degree of knowledge translation and organizational change literature relevant to D&I in healthcare [32]. While there is some current cross-over among these fields, they are often quite distinct and separate from each other when it comes to research and practice. Taken together, our findings suggest that greater efforts to scan across these journals and fields could provide unique transdisciplinary collaborations and innovation opportunities to hasten D&I research and practice. For that matter, D&I advances could also serve to improve management and business practices.

However, citing a framework does not imply use or specify what its application entails. How to operationalize determinants of practice across frameworks also needs to be better understood to advance D&I science. A recent study examined use of the KTA framework using citation analysis and systematic review to see if the framework was used in practice and how [33]. The authors found that it was used with varying degrees of completeness from a simple reference to integration into the design, delivery, and evaluation of the implementation activities. The latter contributing most to advancing D&I science and generalizability of outcomes. Similarly, another recent systematic review examined use of the CFIR among empirical studies in the peer-reviewed literature [34]. Twenty-six articles met inclusion criteria across a breadth of settings and units of analysis. Justification for which CFIR constructs were selected, integration throughout the research study, and relation to outcomes remained poorly articulated, again limiting contributions to D&I research more broadly. Furthermore, systematic efforts to reconcile determinants of healthcare professional practice across 12 different frameworks have generated practical checklists and implementation strategy recommendations to support implementation and quality improvement efforts [35]. Better understanding framework use, consolidation and operationalization of framework determinants, not just citations, could yield more to consider when selecting and using D&I frameworks for research and practice.

There are several limitations to our study approach. First, framework citation rates are influenced by a multitude of factors including journal impact factor, the authors’ fame and publication rate, the degree of research in a given field, whether citation is perceived as positive or negative, and do not necessarily indicate the quality of a given publication or framework [5,6,7, 19]. Nonetheless, citation rates do serve as an approximation of the impact of a scholarly work. We also used an expert-led review article for seed article identification and a robust network analysis tool, coupled with citation rate data, to provide our snapshot of the scientific development of the D&I framework field with substantial face validity. Second, there could be issues with respect to language and the definition of D&I research leading to ascertainment bias. Using our comprehensive CNA approach in Google Scholar™, rather than keyword searches for example, actually created a broader scope for our study. Last, whether the use of highly cited documents (e.g., textbooks) as seed articles, rather than the journal articles selected as seeds in our study, would dramatically change our findings is unclear. Our network tool was inclusive of such documents although they were the minority of articles in both network analyses. Indeed, publishing frameworks outside of journal articles creates challenges, both in terms of physically obtaining the material and being able to grasp the conceptual and operational components dispersed throughout a given textbook. Perhaps corresponding peer-reviewed articles serving as a book review, preferably in open-access formats to improve dissemination, could help mitigate access and citation issues [36].


In conclusion, bibliometric analysis is one way to understand how D&I frameworks are used in the development of D&I science. We used a bibliometric citation analysis tool to help identify the most prevalent models influencing D&I. D&I researchers and practitioners may consider frequency of citation and this network structure when planning implementation efforts to build upon this foundation and promote systematic advances in D&I science.



Consolidated Framework for Implementation Research


Citation Network Analyzer


Dissemination and implementation


Knowledge to Action Framework


Promoting Action on Research Implementation in Health Services Framework


Theoretical Domains Framework
